SYNTEC - Milling Machine Controller

Products

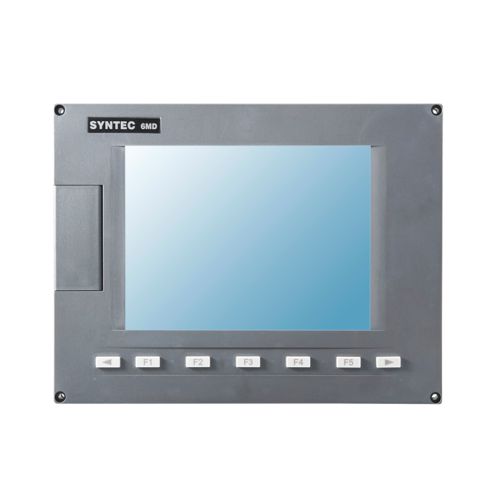

6 Series 6MH,
6MD-H

Features :

  • Standard milling machine control with multiple control schemes. In addition to the traditional pulse-type universal controller, the latest 6MD-H supports the Yaskawa bus communication control method Mechatrolink II / III.

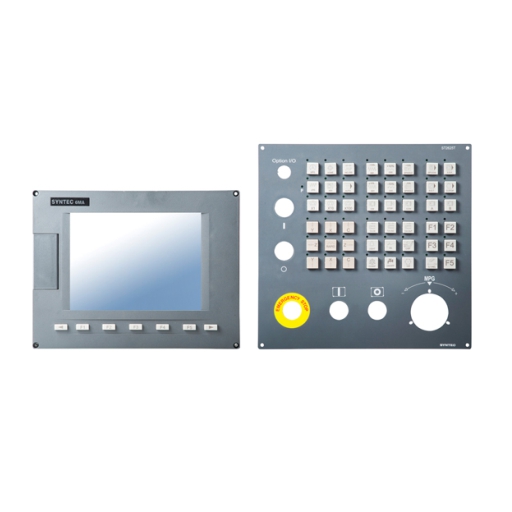

6 Series 6MA,
6MB

Features :

  • Standard milling machine control with multiple control schemes. In addition to the traditional pulse-type universal controller, the latest 6MD-H supports the Yaskawa bus communication control method Mechatrolink II / III.

11 Series (G) 11MA/11MB

Features :

  • Voltage: 100V AC, 120V AC, 230V AC, or 100~240V AC (SMPS)
  • Built-in transformer type: EI or SMPS
  • Maximum output: 24V DC, 3A
  • Plug support: EU, USA, AUS, UK, JPN, or customized

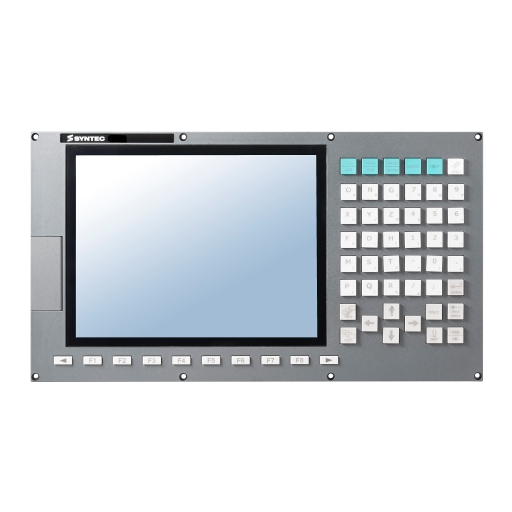

22 Series (Bus) - 22MA

Features :

  • The 22 Series controller is equipped with the Yaskawa bus communication control method, which improves the timing problem of traditional pulse wave universal controllers in multi-axis control motion control, provides good simultaneous control and takes into account timeliness.

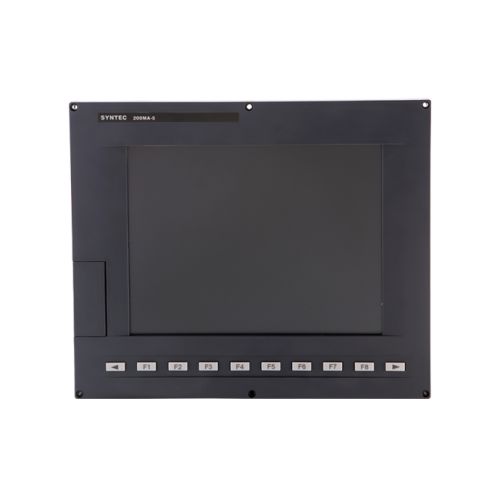

200-5 Series (Bus)

Features :

  • Equipped with a high-performance motherboard, supporting 4 axis groups and 5-axis linkage, and RTCT to achieve complex machining requiring high-precision curved surfaces.

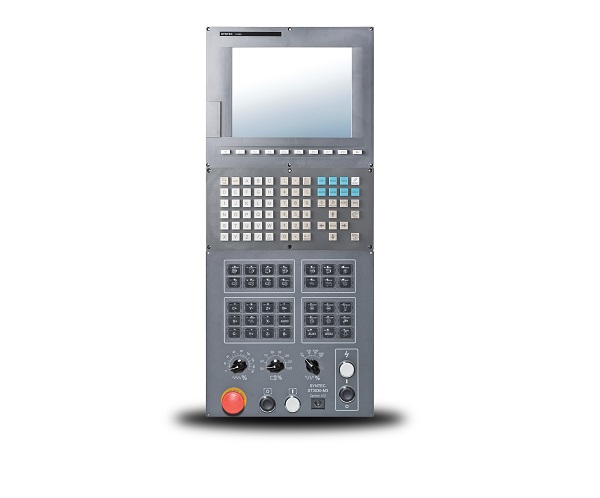

21 series (Bus) 21MA, 21MA-H

Features :

  • The 21 Series controller is equipped with the Yaskawa bus communication control method, which improves the timing problems of traditional pulse wave universal controllers in multi-axis control motion control, provides good simultaneous control and takes into account timeliness.

22 Series (Bus) - 22MA

Features :

  • With high-performance motherboards, it supports 4 axis groups, and with multi-spindle applications, it can effectively improve production efficiency.
  • HPCC function fits the discontinuous blocks into a smooth-curve path, and this will enhance the machining precision and reduce the mechanical shock.

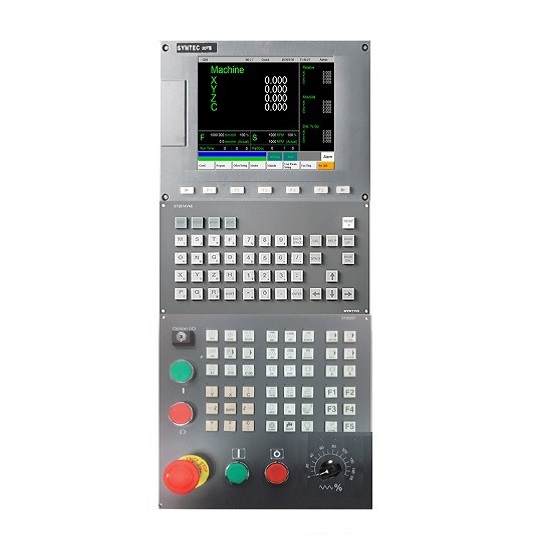

21 Series

Features :

  • Syntec 21MA controller comes with Yaskawa serial bus Mechantrolink-ll/ Mechatrolink-llll connection motion control, improves machining performance by decreasing interpolation time and increasing surface’s smoothness. Serial bus communication control also improves traditional pulse delay of differentiating transfer time between axis, provides a simpler system and easier to install and setup
