FV3S Series

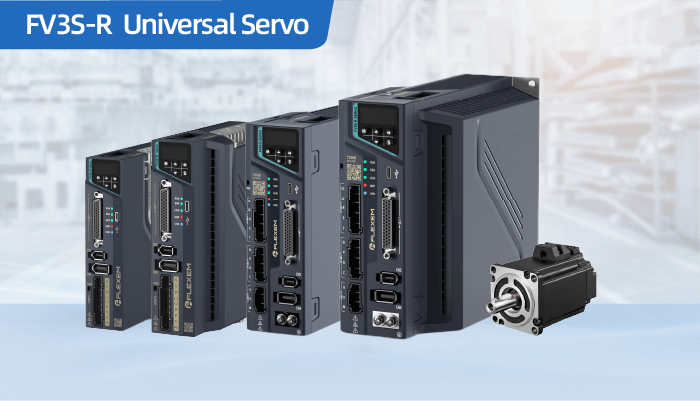

FV3S Series, Rotary-Type Servo

FLEXEM FV3S series general servo products, rotary type. 17/23bit multi-turn absolute motor, 500k pulse input, support EtherCAT, Modbus communication protocol, Type-C debugging, built-in 24V power supply, Bluetooth upload and download parameters.

Specification

FV3S-R*-*△△△△-*** A1R1 A1R6 A2R8 A5R5 A6R0
Continuous Out Current(Arms) 1.1 1.6 2.8 5.5 6.0
Maximum Output Current(Arms) 3.9 5.9 10.1 16.9 18.0
Rated Power(W) 100 200 400 750 1000
Input Voltage Single-phase AC200V-240V，-10~10%，50/60Hz
Debug Port Type-C USB
RS485 Communication 1 RS485,limited to FV3S-R3 series P machine
Encoder Differential Output P Type support
Encoder Z-Phase Pulse Oc Output P Type support
Input Port P Type(Pulse type)6 DI,N Type (EtherCAT BusType)4 DI
Output Port P Type (Pulse type)4 DI,N Type (EtherCAT BusType)4 DI
Brake Function External braking resistor
Minimum External Braking Resistor (Ω) 40 40 40 40 40
Installation Size SIZE-A SIZE-A SIZE-A SIZE-B SIZE-B





FV3S-R*-*△△△△-*** C8R0 C012 T3R5 T5R4 T8R4
Continuous Out Current(Arms) 8.0 12.0 3.5 5.4 8.4
Maximum Output Current(Arms) 23.0 32.0 11.0 14.0 20.0
Rated Power(W) 1500 1000 1000 1500 2000
Input Voltage Single-phase AC200V-240V，-10~10%，50/60Hz Three-phase AC380V-440V，-10~10%，50/60Hz
Debug Port Type-C USB
RS485 Communication 1 RS485,limited to FV3S-R3 series P machine
Encoder Differential Output P Type support
Encoder Z-Phase Pulse OC Output P Type support
Input Port P Type(Pulse type)6 DI,N Type(EtherCAT BusType)4 DI
Output Port P Type (Pulse type)4 DI,N Type (EtherCAT BusType)4 DI
Brake Function External braking resistor
Minimum External Braking Resistor (Ω) 20 15 80 60 45
Installation Size SIZE-C SIZE-D SIZE-C SIZE-C SIZE-D
