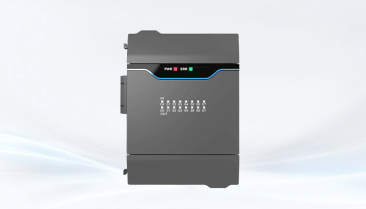

Temperature Expansion Modules

Temperature Expansion Modules

Temperature Expansion Modules are designed to seamlessly extend the temperature sensing and control capabilities of your automation system. These modules support a wide range of thermocouples and RTDs, offering accurate and real-time temperature data acquisition across multiple industrial processes. Ideal for applications in HVAC, food processing, chemical manufacturing, and energy management, they ensure precise temperature monitoring critical to maintaining product quality, safety, and system performance.These modules feature easy DIN-rail mounting, stable signal transmission, and robust noise immunity for reliable operation even in harsh environments. With scalable channel configurations and user-friendly setup.

Specification

Temperature Expansion Modules
Model F5-* MS0400P MS0800P MS0400K MS0800K
Descriptions  Resister temperature sensor input module  Thermocouple temperature sensor input module
Input 4 8 4 8
Rated Power <=30mA(full load) <=60mA(full load) <=40mA(full load) <=80mA(ful load)
Input Sensor Type    Pt100,Pt1000,Ni100,Ni120,Ni1000,Cu50,Cu100  K,J,R,S,B,E,T,N,C type thermercouple;NTC/PTC
Resolution    0.1℃  Temperature:0.1℃;resister;15 bits+1*sign bit
Measuring Precision(Under 25°C Environment)    ±0.5% or ±1℃,take the larger value Thermercouple:(±0.3% or±1℃ of display value,take the
larger value)NTC/PTC:(±0.1% or ±1℃ of display value,
take the larger value)
Measuring Temp(Temperature Range:-20℃~60°) Pt100, Pt100, Ni100, NIi000:PV±1% or 1°C,
take the larger value;
CU50, CU100: PV±1% or±1.5°C,
take the larger value		 Thermercouple input (R, S, B, C) :
(PV ±1% or ±2.5°C, take the larger value)
Other thermocouple input:
(PV±1% or ±1°C, take the larger value)
Impedance Input >=1    MOhm
Cycle <=100ms/channel
Minimum Value Input 0.1℃
Input Filtering 0~10S (take 0.01s as one unit)
Measuring Range Pt100 –200...850 °C
Pt1000 –200...600 °C
Ni100 –60...180 °C
Ni120 –60...180 °C
Ni 1000 –60...180 °C
Cu50 -50…150°C
Cu100 -50…150°C		 K –200...1300 °C, J –200...1000 °C
R 0...1760 °C, S 0...1760 °C
B 0...1820 °C, E –200...800 °C
T –200...400 °C, N –200...1300 °C
C 0...2315 °C

NTC: Measuring range:100 Ω...200 kΩ
Temperature Calculation Range: –90...150 °C
Power Supply 24DC-15%+20%, 3.2w max. The main unit is provided internally without external input.
Wiring Structure Removable terminal block
Working Temperature -10~60℃
Storage Temperature -20~70℃
Environmet Humidity 5~95%RH(Non-condensing)
Instalation Directly installed on DIN46277 (35mm width)guide rail or fixed with screws
Dimension DimensionA Dimension B DimensionA Dimension B
