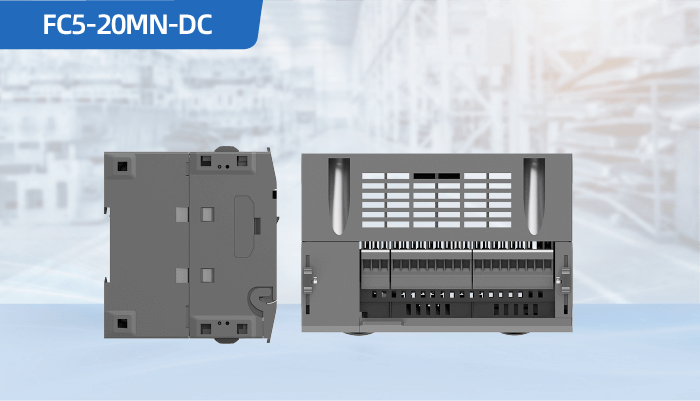

F5 series PLC

F5 series PLC, FS-Unified platform, Cost-effectiveness

F5 series PLC is developed based on FS-unified, the proprietary platform of Flexem, with IEC61131-3 architecture and PLCOPEN standard instruction set. It supports electronic cam, gear, interpolation and other motion control functions, has built-in Ethernet and serial port, object-oriented programming concept, and is extremely cost-effective.

Specification

Series FC5 FC5M
Model FC5-20M* FC5-30M* FC5-40M* FC5M-20M* FC5M-30M* FC5M-40M*
Built in I/O 20 30 40 20 30 40
Input Points 12 18 24 12 18 24
Output Points 8 12 16 8 12 16
 High Speed Pulse Input None 7 Points 100KHz
High Speed Pulse Output None 6 points 100KHz(only transistor output)
Expansion Ability IO Expansion Modules It depends on CPU power supply (MAX 31)
Expansion Board 1 1 2 1 1 2
ModbusCommunication 2 channels (1*DB9,1*terminal block)
Communication
Ports		 USB Type-C Program download and upload,online monitoring,firmware upgrading
RS232/RS485 Serial port 1:RS485/232,Serial port 2:RS485,Baud rate:4800-115200bps
Ethernet Port 1*RJ45,10/100M,self adaptive
RTC Built in
