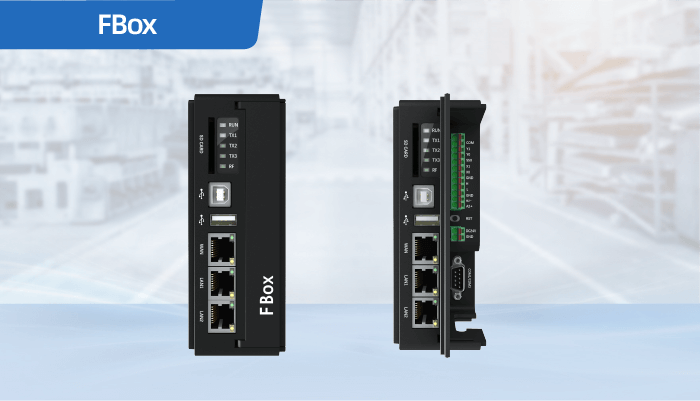

FBox Series

FBox Series - Standard Gateway

FBox series products are on-site intelligent data acquisition terminals in the industrial Internet of Things platform, which can easily realize remote data acquisition, remote download and remote maintenance of on-site equipment.

Specification

FEATURES FBox-4G-G FBox-WiFi
Network Access Ethernet,4G Ethernet,WiFi
CPU 600MHz ARM Cortex-A8 600MHz ARM Cortex-A8
Storage 128MB Flash+128MB DDR3 128MB Flash+128MB DDR3
Ethernet 3lines of 10M/100M Ethernet Port 3lines of 10M/100M Ethernet Port
SD Card Available Available
USB Port 1 USB Device 2.0,1 USB Host 2.0 1 USB Device 2.0,1 USB Host 2.0
IO Port 2-line optoelectronic isolated digital input,
2-line relay output (Maximum 5A)		 2-line optoelectronic isolated digital input,
2-line relay output (Maximum 5A)
Serial Communication Ports COM1:RS232/RS485/RS422,

COM2:RS485,

COM3:RS232

 COM1:RS232/RS485/RS422,

COM2:RS485,

COM3:RS232
Network Frequency Range LTE-FDD:B1/B2/B3/B4/B5/B7/B8/
B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD:B38/B39/B40/B41
WCDMA:B1/B2/B4/B5/B6/B8/B19
GSM:850/900/1800/1900MHz		 IEEE802.11b/g/n
compatible WLAN
IEEE 802.11e
QoS Enhancement(WMM)
RTC Built-in Built-in
Rated Power <5W <5W
Input Voltage DC24V,working range:DC9V-28V DC24V,working range:DC9V-28V
Power Prolection Protect from thunder strike and surging Protect from thunder strike and surging
Power Interruption Tolerance <3mS <3mS
Certification CE,RoHS CE,RoHS
Operating Temperature -10-60℃ -10-60℃
Storage Temperature -20-70℃ -20-70℃
Environmental Humidity 10-90%RH (Non condensation) 10-90%RH (Non condensation)
Vibration Endurance 10-25Hz(X/Y/Z direction 2G/30minutes) 10-25Hz(X/Y/Z direction 2G/30minutes)
Cooling Natural cooling Natural cooling
Dimensions 130mm×94mm×48mm(without  antenna) 130mm×94mm×48mm(without antenna)
Weight About 320g About 320g
Endosure Material  Engineering plastic  Engineering plastic
Transparent Transmission  Available  Available
VPN Transparent Transmission Available Available
Data Monitoring 500 points 500 points
Alarm Item 200 points 200points
Historical Item 100 points 100 points
Hisiorical Data Storage Duration 180 days 180 days
Edge Computing It supports scipts programming It supports scipts programming
Network Protocols It supports over 400 industrial devices protocols It supports over 400 industrial devices protocols
Management & Maintenance Support import,export,and remote update of configuration files Support import,export,and remote update of configuration files
