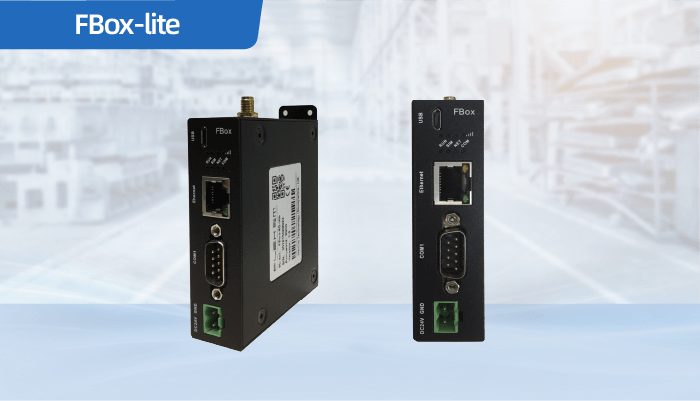

FBox-lite Series

FBox-lite Series - Economic Gateway

FBox-lite is a lightweight industrial IoT gateway designed for small industrial projects and edge computing scenarios. Compared with FBox, FBox-lite is smaller in size, has simpler interfaces, and is more cost-effective, meeting the data collection and remote operation and maintenance needs of mainstream industrial controllers.

Specification

FEATURES FBox-4G-lite
NetworkAccess Ethernet,4G
CPU Cortex-A7(1GHz main frequency, dual-core)
Storage 128MB  Flash+64MB DDR2
Ethernet 1 line of 10M/100M Ethernet Port
SD Card NA
USB Port 1 USB Tpye-C 2.0 Port
IO Port NA
Serial Communication Ports COM1:RS232/RS485/RS422,COM3:RS232
Network Frequency Range LTE FDD:B1/B3/B5/B8
LTE TDD:B34/B38/B39/B40/B41
RTC Built-in
Rated Power <5W
Input Voltage DC24V,working range:DC9V-28V
PowerProlection Protect from thunder strike and surging
Power Interruption Tolerance <3mS
Certification CE,RoHS
Operating Temperature -10-60℃
Storage Temperature -20-70℃
Environmental Humidity 10-90%RH (Non condensation)
Vibration Endurance 10-25Hz(X/Y/Z direction 2G/30minutes)
Cooling Natural cooling
Dimensions 106mm*72mm*25mm (without antenna)
Weight About 220g
Endosure Material Powder coated galvanized sheet
Transparent Transmission Available
VPN Transparent Transmission Available
Data Monitoring 500 points
Alarm Item 200 points
Historical Item 100 points
Hisiorical Data Storage Duration 60 days
Edge Computing It supports scipts programming
Network Protocols It supports over 400 industrial devices protocols
Management & Maintenance Support import,export,and remote update of configuration files
