FE7070WE-32MR

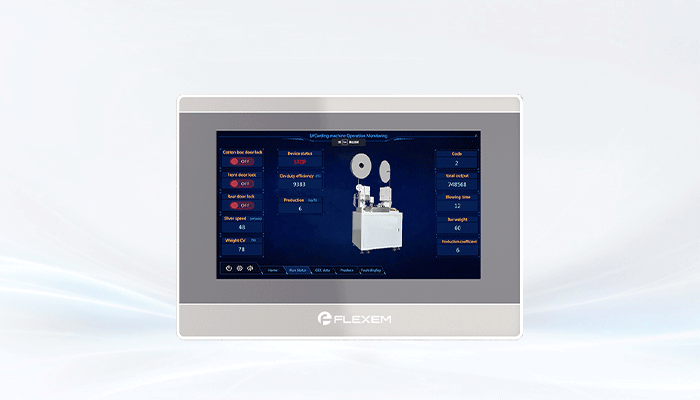

FE7070WE-32MR (NPN) 7" HMI, NPN output

FE7070WE-32MR is a cost-effective HMI+PLC all-in-one solution. It has 7" resistive touch screen, and 16I+16O (8*NPN + 8*Relay) PLC. The cutout size is 7 inch with high density, and space-saving features. Main-board conformal coating, adapting to various harsh environments. User-friendly configuration software, easy to use. Easy to install.

Specification

FEATURES FE7070WE-32MR
Human-Machine Interface Display
Display 7" 16:9 TFT LCD
Resolution 1024×600
Colors 24-bit
Brightness 350  cd/m²
Backlight LED
LCD Lifetime 50000 hours
Touch Panel 4-wire industrial resistive touch panel
CPU Cortex-A7(1GHz,dual-core)
Storage 128MB DDR3+4GB EMMC
RTC Built-in
Ethernet 1*RJ45,10M/100M self-adaptive
USB Port 1*USB Type-C 2.0 port;1*USB Type-A 2.0 port
Serial Port 1*RS485(COM1),signal isolation
Program Download Method USB/USB Slave/Ethernet
LCD Viewing Angles(T/B/L/R) 85°/85°/85°/85°
Configuration Software FStudio
Corresponding HMI
Model in FStudio Sotware		 FE7070WE
Programmable Logic Controller
CPU ARM 32-bit CortexTM-M3 CPU
Digital Input 16-channel Input
Digital Output 8-channel Transistor(NPN)Output + 8-channel Relay Output
Analog Input 4 channels,4~20mA/0~10V,16-bit resolution,signal isolated
Analog Output 2 channels,4~20mA/0~10V,12-bit resolufion,signal
isolated
PT100 4 channels,three-wire PT100,signal isolated
User Program Memory 150K Bytes
Non-volatile Memory or Retentive Memory 4K Bytes
Timer In total: 256
100ms Timer:206(timing range from 0.1 to3276.7 seconds)
10ms Timer:46(timing range from 0.01 to327.67 seconds)
1ms Timer: 4 (timing range from 0.001 to 32.767 seconds)
Counter 235
High-Speed Interrupt Rising and falling edge interrupts on X0~X4,3 timer interrupts
Program Execufion Mode Cyclic Scanning
Processing Speed General Instructions:0.1μs
Functional Instructions (ON state 5μs;OFF state 0.5μs)
Programming Language Ladder Diagram &Standard C Language
Serial Communication Port 1*RS485(PORT1),supports Mitsubishi FX2N and
Modbus RTU protocol,signal isolated
Programming Port USB
Programming Software FlexLogic
Corresponding PLC Model in FlexLogic Software FL3-32MR-DC
HMI+PLC All-in-One Machine
Rated Power <10W
Rated Voltage DC24V,operatonal range:DC 18V~30V
Power Protection With an isolated power supply module,lightning surge
protection
Power Interruption
Tolerance		 <5ms
CE & RoHS EN61000-6-2:2019 and EN61000-6-4:2019 standards certified;
RoHS certified;lightning surge±1kV；
group pulse±2kV;electrostatic contact 4kV,air discharge 8kV
Operating Temperature 0~50℃
Storage Temperature -20~60℃
UV Resistance Operating in hgh UV environment is prohibited (e.g.,in direct sunlight)
Environmental Humidity 10%~90%RH  (non-condensing)
Vibration Endurance 10~25Hz(X/Y/Z direction,2G/30 minutes)
Cooling Method Natural air cooling
Protection Level Front:IP65(with flush panel cabinet installation),Rear：IP20
Conformal Coating Mainboard conformal coating,and glue dispensing
Enclosure Material Engineering Plastics
Cutout Dimensions 190mm×136mm
Dimensions 204mm×145mmX48mm
Weight About 750g
